• Smallest footprint, fits anywhere

  Ultra-compact, the Micro Monitor Pro offers even the most demanding mix engineers and audiophiles the features they need to work or enjoy music anywhere without sacrifice. Beyond incredible sound, its retractable rubber feet and 3/8" threaded insert allow Micro Monitor Pro to adapt to any size setup. Angle them on your desktop, mount them on mic stands, or use the optional iLoud wall/ceiling mounts to fit your space and needs precisely.

• Portable and powerful

  Micro Monitor Pro is palm-sized and weighs just 3 pounds. It packs a 50 W RMS class D high-efficiency amplifier and high-quality custom-made drivers. With a full-band maximum SPL of over 95 dB per speaker, it easily outperforms monitors twice its size. The exclusive 3″ high-performance long-throw woofer and the 1″ silk dome tweeter are engineered and manufactured under strict tolerances to make all units sound identical for precise and solid imaging.

• The latest tech inside

  Advanced DSP handles all Micro Monitor Pro’s core audio functions using audiophile-grade high-resolution algorithms for cross-over, filtering, time alignment, equalization, dynamic control and auto-calibration. A/D conversion is at today's highest standards, maintaining a pristine and pure signal from the analog input to your ears. The results are a listening experience unmatched by any other speaker in its weight class.

• Studio quality anywhere

  You'll enjoy transparent, true-to-life sound without hype or coloration from Micro Monitor Pro’s ultra-flat frequency range of 50 Hz to 20 kHz ± 2 dB (42 Hz to 22 kHz @ -10 dB). Bass frequencies are solid and firm with no booms or tails. Highs are transparent, defined and neutral. You’ll hear the audio precisely for what it is with less ear fatigue, even during long listening sessions. Linear phase and accurate transient response allow for quickly making the right mix decisions.

• Built-in ARC correction

  Compact studio monitors are used everywhere, from quality control rooms to mobile setups, but each space is different. iLoud Micro Monitor Pro features built-in ARC room correction to automatically balance its frequency response in any room or placement. With the ARC MEMS calibration microphone, you can calibrate each monitor in just 2 minutes, significantly improving the reliability of the monitoring setup and translation of your work. You can easily switch between the standard settings and the ARC calibration to hear the difference.

• The ideal immersive audio solution

  With its ultra-compact size, super lightweight design, and pro-quality performance, the Micro Monitor Pro is an immersive monitor setup that offers superior sound for this price and form factor. Ideal for mixing and mastering rooms that are space-confined or home studios that want to experience spatial audio in their own space, the iLoud Micro Monitor Pro Immersive Bundle 11 brings immersive ability to anyone without breaking the bank.

Great sound anywhere you go

• Compact and lightweight (3.02 lb.) for easy transport and setup
• Ultra-flat and extended response from 50 Hz to 20 kHz ± 2 dB
• Adjust on the fly for LF Extension, LF trim, HF trim and Desk position
• Explore 20+ emulations of popular studio monitors to A/B mixes anywhere

No compromise components

• Digitally controlled high-efficiency 50 W RMS bi-amped class-D amplifiers
• High performance, custom-made 3ʺ mid-woofer and 1ʺ silk dome tweeter
• Maximum peak SPL rating of 109.5 dB at 1 meter beats larger speakers
• Includes X-MONITOR software for custom settings and firmware updates
• Includes tiltable isolation foot and mic-stand size insert for quick mounting

• Type: 2-Way bi-amped, digitally controlled compact studio monitor
• LF driver: 3″ composite cellulose fiber, custom-made mid-woofer
• HF driver: 1″ low-distortion silk-dome tweeter
• Acoustic design: DSP-tuned bass reflex
• Number of amps per speaker: 2
• Amplifier type: High-efficiency Class-D
• Total power: 50 W RMS
• LF power: 30 W RMS
• HF power: 20 W RMS
• Crossover type: Digital, Linear Phase
• Crossover frequency: 2.5 kHz
• Frequency response: 50 Hz to 20 kHz ± 2dB, 42 Hz to 22 kHz @ -10dB
• Phase response: System remains coherent within +/- 30° from 500 Hz to 20 kHz
• Sensitivity (XLR): -10 dBu signal generates 90 dB SPL @ 1 m
• Sensitivity (RCA): -22 dBu signal generates 90 dB SPL @ 1m
• Continuous max SPL: 94 dB (free field, one speaker, 1 m distance, ANSI-2034 weighted pink noise)
• Peak SPL: 107.3 dB (free field, one speaker, 1 m distance, ANSI-2034 weighted pink noise)
• Peak SPL: 109.3 dB (half space, one speaker, 1 m distance, ANSI-2034 weighted pink noise)
• Placement setup: Manual switches for LF Extension, LF trim, HF trim, Desk position
• LF extension switch: Sets -3 dB point of the frequency response at 50 or 80 Hz (LFE)
• LF switch: Low shelf, +2 dB or -3 dB from 100 Hz down
• HF switch: High shelf, +2 dB or -2 dB from 8 kHz up
• Desk switch: -3 dB at 250 Hz and +4 dB at 1.2 kHz
• Calibration: Fully automatic and built-in digital calibration
• Full DSP control
• X-MONITOR macOS and Windows control software
• Total Latency (TOF): 3.00 ms

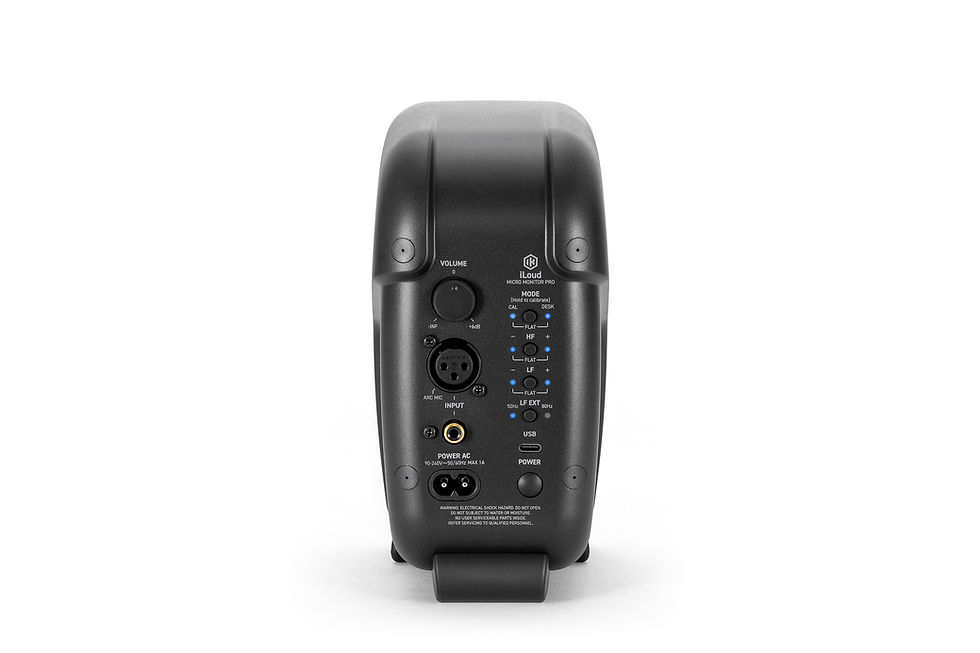

• Connectors: 1 x XLR balanced input, 1 x RCA unbalanced input, 1 x USB type-C, C8 power socket
• Power requirement: 90 to 240 V AC, auto-ranging, 50 or 60 Hz, 1 A max

Dimensions (per unit)

• Dimensions: 106 mm (4.17″) x 206 mm (8.11″) x 158 mm (6.22″)
• Weight: 1.37 kg (3.02 lb.)

• 2 x iLoud Micro Monitor Pro speaker
• 2 x Power cord
• 2 x USB-A to USB-C cable, 1.5 m (4.92 ft)
• 1 x ARC Microphone
• 1 x ARC Microphone clamp

System Requirements

X-MONITOR

Mac® (64-bits)

Minimal: Apple M1 or Intel® Core i5 Processor, 4 GB of RAM, macOS® 10.15 or newer (macOS 11 or newer required for Apple Silicon Processors).

Windows® (64-bits)

Minimal: Intel® Core i5 Processor or equivalent, 4 GB of RAM, Windows 10 (64 bit) or newer.



X-MONITOR

Explore new sonic territory

Introducing X-MONITOR, an advanced control application for iLoud studio monitors, assisting with acoustic self-calibration and enabling extended acoustic and voicing adjustments. Think of X-MONITOR as your Mac/PC command post for all the superb audio processing features built into iLoud Precision.

Download here.
